ABOUT OUR PAINT SPRAY HOSES
Our airless paint spray hoses are particularly well-suited for applications that demand chemical resistance to solvents and aggressive fluids. Additionally, thanks to the low permeation value of polyamide, the hose used in these systems can also safely handle industrial gases.
CORE: Polyamide
REINFORCEMENT: Single braid of steel wire
COVER: Polyurethane, blue Color, pin pricking (optional)
TEMPERATURE RANGE: Continuous -40°C to +100°C
Not to exceed +70°C for air and water based fluids
FITTINGS: Female NPSM fitting MS material

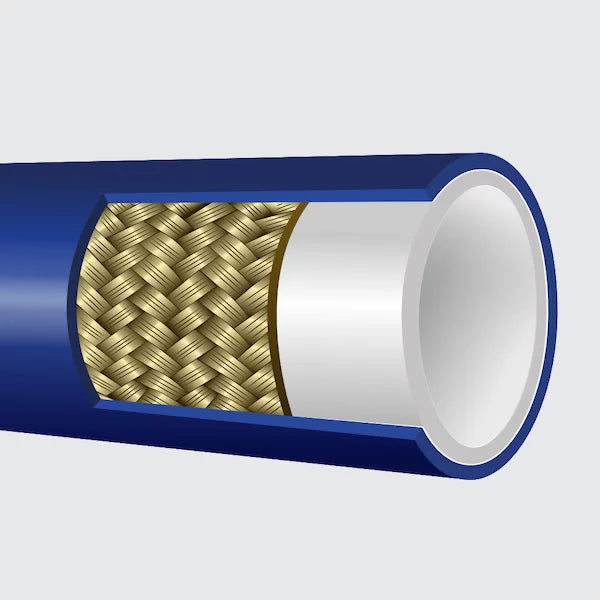

1 WIRE PAINT SPRAY HOSES
- 100 TO 350 BAR
- ¼" OR ⅜" THREAD

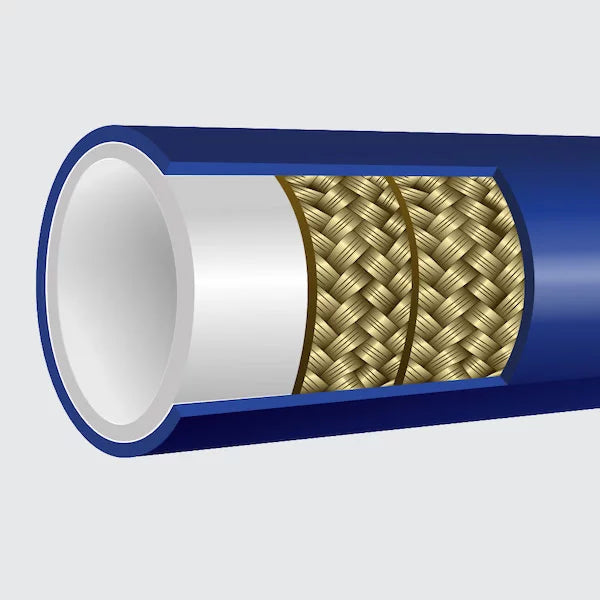

2 WIRE PAINT SPRAY HOSES
- HIGH PRESSURE
- 150 TO 450 BAR
- ¼" OR ⅜" THREAD
